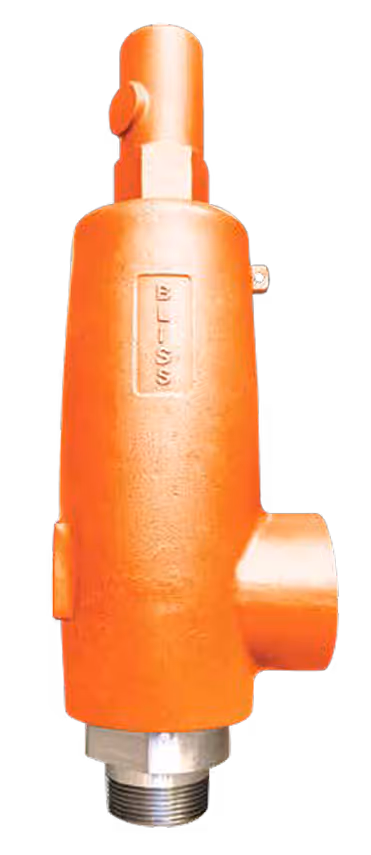

Bliss 29 Series – Pressure Relief Valve

The Bliss 29 Series Pressure Relief Valve is engineered to ensure reliable overpressure protection for vessels and pipelines across air, gas, steam, and liquid services. This versatile series features both conventional and balanced designs, built in accordance with ASME Section VIII and National Board standards. It offers high operational safety, simplified maintenance, and low fugitive emissions thanks to optional O-ring and soft-seat configurations. Available in a broad range of sizes and materials—including stainless steel, Monel®, and Hastelloy®—the 29 Series supports pressures from 15 psig to 6500 psig, with orifice areas ranging from 0.068 to 0.573 in², and can operate in extreme temperatures from -450°F to +1000°F depending on material and seal choice.

Features

Design Compliance: ASME Section VIII, API, National Board Certified

Available Configurations: Conventional & Balanced Design

Set Pressure Range: 15 psig to 6500 psig (1 to 448 barg)

Temperature Range: -450°F to +1000°F (-268°C to +537°C), based on seal material

Seat Types: Metal Seat, Soft Seat, PTFE Seat

Orifice Sizes: C (0.071 in²), D (0.129 in²), E (0.227 in²), F (0.356 in²)

Connection Types: MNPT, FNPT, Flanged (150# to 2500#), Socket Weld, Sanitary, Welding Nipple

Material Options: 316 SS, Carbon Steel, Monel®, Hastelloy®, Inconel® Springs

O-Ring Options: Viton®, Buna-N, EPDM, Silicone, Kalrez®, PTFE

Certifications: ASME, PED, National Board, NACE MR0103 & MR0175

Products Deployed In

Industries Served

Oil Pump
Oil & Gas
Refineries, offshore platforms, storage tanks
chemical
Petrochemical & Chemical
Corrosive and hazardous liquid handling
Nuclear Power Plant
Power & Utilities
Boiler drum level, condensate monitoring
Sewage
Water & Wastewater
Reservoirs, treatment plants
Water Transportation
Marine & Shipbuilding
Ballast and bilge tank level monitoring
Pharma

Pharmaceuticals

Sterile and sanitary level control
Beverage

Food & Beverage Processing

Tanks containing liquids like syrups, oils, and dairy
Paper

Pulp & Paper Industry

Cemical treatment tanks, bleach towers, and storage vessels
